Central Carolina Scale sells and services Digi Scales and Weighing Equipment

DIGI FLOOR SCALE SYSTEM

An Economical Choice Offering Exceptional Performance
The Digi Summit® 3000 Series provides exceptional performance in light industrial and legal-for-trade applications. While value-priced, the Summit 3000 also employs a rugged design to deliver efficient installation and operation.

Top Notch Features
The convenient top-access junction box is housed in a durable ABS enclosure and is protected from fork trucks and other industrial abuse by the Summit 3000’s diamond treadplate steel deck. The scale has fully adjustable, rigid polyurethane rubber feet to accommodate weighing on uneven surfaces.

Industrial Tough
The load cell cable exits the weldment towards the interior of the scale, allowing you the flexibility to route it out any side of the scale to the digital weight indicator. This also means the indicator load cell cable is at floor level—reducing the potential for damage.

Standard System includes:
(1) 120 Digital Readout
(1) Digi Summit 3000 Series Low Profile 4x4 Floor Scale
(1) Factory Calibration 5000 x 1 lb or 10,000 x 2 lb

Applications

• NTEP Approved Legal-for-trade 5000 divisions
• Pallet weighing
• Shipping and receiving

120 Digital ReadoutSummit Floor Scale

Product Features

• Four NTEP certified alloy steel shear beam load cells
• Top access J-box
• Rugged diamond safety treadplate steel deck
• Four adjustable rigid polyurethane rubber feet, 3" (76.2 mm) diameter
• Signal trim summing board housed in ABS enclosure
• Threaded eyebolt hole located in the center of the deck for easy lifting
• 20 ft. of EL147 load cell cable

Digi Summit 3000 Floor Scale Information (pdf file)

Options & Accessories

* Battery Power -- NTEP IQ590
• Access ramps
• Pit frames
• Floor anchor plates, mild steel (set of two)
• 14-pin load cell connector, Amphenol
• 14-pin connector with 20 ft cable
• Top access foot adjust holes
• Indicator Floor Stand

NOW AVAILABLE w/ the 120 PLUS BATTERY PWR INDICATOR AS WELL

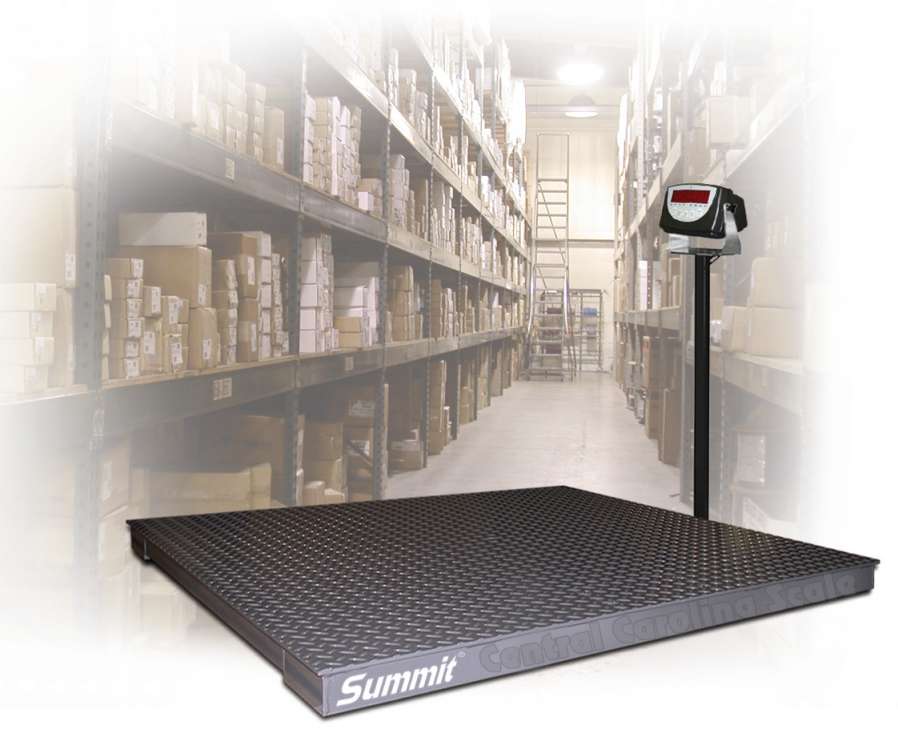

floor scale shown with optional indicator floor stand
Digi Floor Scale System shown w/ OPTIONAL floor stand



NTEP Approved Models
Part Number
Plaform Size
Indicator
Capacity x Readability
78772
4' x 4'
120
5000 x 1 lbs
78773
4' x 4'
120
10,000 x 2 lbs
Part Number
Plaform Size
Indicator
Capacity x Readability
106913
4' x 4'
120 plus
5000 x 1 lbs
106914
4' x 4'
120 plus
10,000 x 2 lbs


Measurement Canada Approved Models
Part Number
Plaform Size
Indicator
Capacity x Readability
78776
4' x 4'
120
2500 x 0.5 kg
78777
4' x 4'
120
5000 x 1 kg
Part Number
Plaform Size
Indicator
Capacity x Readability
106917
4' x 4'
120 plus
2500 x 0.5 kg
106918
4' x 4'
120 plus
5000 x 1 kg







Call (919) 776-7737 or click above for more information or to place an order
