Cardinal Guardian Hydraulic Floor Scales and Lift Up Top Weighing Systems

Central Carolina Scale sells and services Cardinal 4' x 4' and 5' x 5' 10,000 lbs.

Guardian Hydraulic Floor Scales

The Cardinal Guardian Hydraulic Floor Scale series is just what the name implies, optimum guarded protection against harsh environments. Most models are designed with STAINLESS STEEL DECKS and all feature STAINLESS STEEL LOAD CELLS. This premier floor scale guards against power surges, corrosion from chemicals, explosive environments, and high-pressure washdowns. Utilizing hydraulic load cells, there is absolutely NO ELECTRICAL POWER IN THE SCALE ITSELF, providing you with the best choice for weighing in water-laden environments. The Guardian is your shield against the dangers inherent in EXTREME-DUTY ENVIRONMENTS and is excellent for food grade processing applications. To insure your investment, Cardinal provides a lifetime warranty on the Guardian’s hydraulic load cells. Standard Guardian floor scales also available.

	CARDINAL LIFT-UP TOP GUARDIAN ST STEEL HYDRAULIC FLOOR SCALES
	GUARDIAN HYDRAULIC FLOOR SCALES GAS-ASSISTED CYLINDER LIFT-TOP DECKS

CARDINAL LIFT-UP TOP GUARDIAN STAINLESS STEEL HYDRAULIC FLOOR SCALES

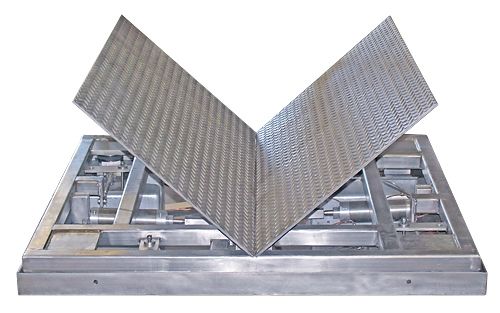

Lift-up top design, with stainless steel pneumatic spring, allows for easy lifting of the heavy duty deck.
Stainless steel construction (checkered deck) with Cardinal Guardian hydraulic load cells. Totalizer sized for the system and 20' of copper tubing. Cardinal's Guardian HHLT series feature valve-controlled lifting to automatically raise and lower the scale deck for easy access to components below the scale's surface for clean-up. Stainless steel pneumatic cyinders do all the heavy lifting for you! Pit installation only. These scales are specifically designed to meet the special sanitation requirements in food processing and pharmaceutical plants. They provide quick access to components below the scale surface for cleaning and inspection. Pneumatic controls not provided.

Pneumatic deck power lift - (consult factory for quote)

Brochure (pdf file)



MODEL	CAPACITY	PLATFORM SIZE	DECK CONSTRUCTION	SHIPPING WEIGHT
HHLT-544S	5,000 lb x 1 lb / 2,500 kg x 0.5 kg	4' x 4' / 1.2 m x 1.2 m	Stainless Steel	621 lb
HHLT-555S	5,000 lb x 1 lb / 2,500 kg x 0.5 kg	5' x 5' / 1.5 m x 1.5 m	Stainless Steel	908 lb
HHLT-1044S	10,000 lb x 2 lb / 4,500 kg x 1 kg	4' x 4' / 1.2 m x 1.2 m	Stainless Steel	653 lb
HHLT-1055S	10,000 lb x 2 lb / 4,500 kg x 1 kg	5' x 5' / 1.5 m x 1.5 m	Stainless Steel	940 lb

Call (919) 776-7737 for more information or to place an order

GUARDIAN HYDRAULIC FLOOR SCALES
GAS-ASSISTED CYLINDER LIFT-TOP DECKS
These floor scales provide easy access to the area below the scale deck for cleaning with a high-pressure hose. This avoids hard-to-clean pockets that can breed bacteria and allow food or chemicals to build up over time. Cardinal's Guardian HGA series feature gas-assisted cylinder lift-top decks. To open or close the scale deck, simply raise or lower it manually and the gas-assisted cylinders do all the heavy lifting for you, providing the necessary pressure for the lifting force. It functions just like the hatch on your car trunk.
