PRODUCTS

Central Carolina Scale sells and services Cardinal 4' x 4' and 5' x 5' 10,000 lbs.

Cardinal Floor Hugger Platform Scales

Available in: Painted Mild Steel .......... Stainless Steel

Rapid, accurate weighing translates into optimum performance in any operation, and Cardinal's Floor Hugger helps you reach that goal. This above-ground platform scale provides you with the latest in weighing technology. Cardinal's unique load cell assembly is self-checking and environmentally sealed for those less-than-perfect locations.

Other design features include a rigidly constructed weighbridge with easy to remove ramps. When necessary, the entire scale can be conveniently lifted, moved, and re-installed as your production and traffic flow needs change.

Select a 204, 205, 210 or 220 digital weight displays or printers to complete your weighing package. Our wide selection of weight displays provides the answer to almost any weighing and control needs, from simple to complex. Our printers are equally flexible in design to meet recording and data processing needs.

Brochure (pdf file)

Floor Hugger Features

Low Profile
Electronic

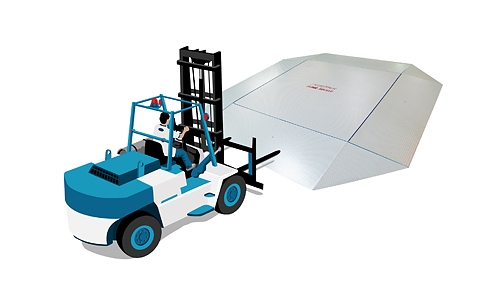

Four Way Approach
Platform Sizes from 3' x 3' to 12' x 10' & Capacities ranging from 1000 lb to 20,000 lb
Stainless Steel Load Cells

Heavy Duty Frameless Floor Huggers
(1,000 lb to 5,000 lb)

Model	Platform Size	Capacity / Graduation
FH-133-II	3' x 3' (1 m x 1 m)	1,000 lb x .2 lb (455 kg x .1 kg)
FH-144-II	4' x 4' (1.2 m x 1.2 m)
FH-155-II	5' x 5' (1.5 m x 1.5 m)
FH-233-II	3' x 3' (1 m x 1 m)	2,000 lb x .5 lb (910 kg x .2 kg)
FH-244-II	4' x 4' (1.2 m x 1.2 m)
FH-255-II	5' x 5' (1.5 m x 1.5 m)
FH-533-F (RuggedWeigh)	3' x 3' (1 m x 1 m)	5,000 lb x 1 lb (2,270 kg x .5 kg)
FH-544-F (RuggedWeigh)	4' x 4' (1.2 m x 1.2 m)
FH-555-F (RuggedWeigh)	5' x 5' (1.5 m x 1.5 m)

Extra Heavy Duty Frameless Floor Huggers
(5,000 lb to 20,000 lb)

Model	Platform Size	Capacity / Graduation
FHN-533	3' x 3' (1 m x 1 m)	5000 lb x 1 lb (2270 kg x .5 kg)
FHN-544	4' x 4' (1.2 m x 1.2 m)
FHN-554	5' x 4' (1.5 m x 1.2m)
FHN-555	5' x 5' (1.5 m x 1.5 m)
FHN-564	6' x 4' (1.8 m x 1.2 m)
FHN-575	7' x 5' (2 m x 1.5 m)
FHN-1044	4' x 4' (1.2 m x 1.2 m)	10,000 lb x 2 lb (4535 kg x 1 kg)
FHN-1054	7' x 5' (2 m x 1.5 m)
FHN-1055	5' x 5' (1.5 m x 1.5 m)
FHN-1064	6' x 4' (1.8 m x 1.2 m)
FHN-1075	7' x 5' (2 m x 1.5 m)

Extra Heavy Duty Lower Frame Floor Huggers
(5,000 lb to 20,000 lb)

Model	Platform Size	Capacity / Graduation
FH-544-II	4' x 4'	5,000 lb x 1 lb (2,270 kg x .5 kg)
FH-555-II	5' x 5'	5,000 lb x 1 lb (2,270 kg x .5 kg)
FH-1044-II	4' x 4'	10,000 lb x 2 lb (4,535 kg x 1 kg)
FH-1055-II	5' x 5'	10,000 lb x 2 lb (4,535 kg x 1 kg)
FH-2055-II	5' x 5'	20,000 lb x 5 lb (9,070 kg x 2 kg)
FH-2064-II	6' x 4'
FH-2075-II	7' x 5'
FH-2086-II	8' x 6'
FH-2097-II	9' x 7'
FH-201010-II	10' x 10'
FH-201210-II	12' x 10'

Call (919) 776-7737 for more information or to place an order

A Cardinal Scale True Story...

The Cardinal Scale Canadian office was recently asked by the Toronto Zoo, “How do you weigh a gorilla?” Well, the first immediate answer was, “very carefully”. Cardinal Scale had the solution with a Cardinal floor hugger and 200 series indicator.

The Silver Back Gorilla is one of the largest in the world and can lift 10 times its own weight. Keeping with that thought, these 450 lb gorillas could pick up a Cardinal floor scale and use it for a toy! Steve worked with the zoo to get the scale positioned in a pen configured to get the gorillas to weigh on the scale for the purpose of medication and nutritional requirements.

The Toronto zoo has 9 of these Silver Back Gorillas and now a “weigh” to manage the animals healthrequirements.

The zoo plans to add additional Cardinal floor sales to weigh Cheetahs, White Rhinos, Bears and Lions.

Stainless Steel Floorhuggers

SS Floorhugger with full frame

Model	Platform Size	Capacity / Graduation
Frameless. Stainless Steel Constuction. Stainless Steel Load cells. Ramps available. 15' home run cable -- Not NTEP
FH-133-IIS	3' x 3'	1,000 lb x .2 lb
FH-144-IIS	4' x 4'
FH-155-IIS	5' x 5' (spliced deck plate)
FH-233-IIS	3' x 3'	2,000 lb x .5 lb
FH-244-IIS	4' x 4'
FH-255-IIS	5' x 5' (spliced deck plate)
FH-533-IIES	3' x 3'	5,000 lb x 1 lb
FH-544-IIES	4' x 4'
FH-544-IIES	5' x 5' (spliced deck plate)
Ruggedweigh -- Stainless Steel Economy Scale -- NTEP Certified
FH-533-FS	3' x 3'	5000 x 1 lb
FH-544-FS	4' x 4'
FH-555-FS	5' x 5'
Frameless Stainless Steel Floor Hugger -- Extra Heavy Duty -- SS Hermetically sealed loadcells -- 15' home run cable -- NTEP Approved
FHN-533S	3' x 3'	5,000 lb x 1 lb
FHN-544S	4' x 4'
FHN-554S	5' x 4'
FHN-555S	5' x 5' (spliced deck plates)
FHN-564S	4' x 6'
FHN-575S	7' x 5' (spliced deck plates)
FHN-1044S	4' x 4'	10,000 lb x 2 lb
FHN-1054S	5' x 4'
FHN-1055S	5' x 5' (spliced deck plates)
FHN-1064S	4' x 6'
FHN-1075S	7' x 5' (spliced deck plates)

Extra Heavy Duty Lower Frame Floor Hugger -- Stainless Steel Construction -- Hermetically sealed SS loadcells -- includes lower frame -- ideal for pits -- 15' home run cable -- NTEP
FH-544-IIS	4' x 4'	5,000 lb
FH-555-IIS	5' x 5' (spliced deck plates)	5,000 lb
FH-1044-IIS	4' x 4'	10,000 lb
FH-1055-IIS	5' x 5' (spliced deck plates)	10,000 lb
FH-2064-IIS	6' x 4'	20,000 lb
FH-2075-IIS	7' x 5'
FH-2086-IIS	8' x 6'
FH-2097-IIS	9' x 7'

Pit Type Applications
The Cardinal Full Frame Floor Scale is the perfect choice for pit type applications where you need the scale flush
with your floor surface. The lower frame design allows you to lower the scale into a preformed pit with minimal construction required. Available in painted or stainless steel and with top access junction box.

Scale for pit
